规格及性能

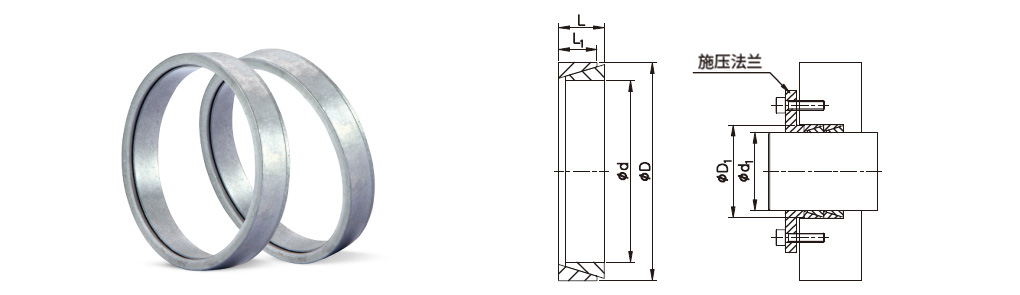

| 产品型号 d X D |
CAD | 尺寸 (mm) | 初期锁紧力 Ppre-load (N) |
使用多套时“W”尺寸 (mm) | 施压法兰尺寸 | 面压 (Mpa) | 质量(g) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L1 | L | 1 set | 2 set | 3 set | 4 set | d1 | D1 | 轴 (Pi) | 轴套 (Po) | ||||
| SAPL-R-6 x 9 |  |
3.7 | 4.5 | 8400 | 2.5 | 2.5 | 3 | 4 | 6.1 | 8.9 | 115 | 75 | 2 |
| SAPL-R-7 x 10 | |
3.7 | 4.5 | 8200 | 2.5 | 2.5 | 3 | 4 | 7.1 | 9.9 | 105 | 70 | 2 |
| SAPL-R-8 x 11 | |
3.7 | 4.5 | 7700 | 2.5 | 2.5 | 3 | 4 | 8.1 | 10.9 | 120 | 90 | 2 |
| SAPL-R-9 x 12 | |
3.7 | 4.5 | 7650 | 2.5 | 2.5 | 3 | 4 | 9.1 | 11.9 | 140 | 105 | 2 |
| SAPL-R-10 x 13 | |
3.7 | 4.5 | 7000 | 2.5 | 2.5 | 3 | 4 | 10.1 | 12.9 | 135 | 105 | 2 |
| SAPL-R-11 x 14 | |
3.7 | 4.5 | 7000 | 2.5 | 2.5 | 3 | 4 | 11.1 | 13.9 | 115 | 90 | 2 |
| SAPL-R-12 x 15 | |
3.7 | 4.5 | 7000 | 2.5 | 2.5 | 3 | 4 | 12.1 | 14.9 | 115 | 90 | 2 |
| SAPL-R-13 x 16 | |
3.7 | 4.5 | 6500 | 2.5 | 2.5 | 3 | 4 | 13.1 | 15.9 | 110 | 90 | 2 |
| SAPL-R-14 x 18 | |
5.3 | 6.3 | 11000 | 3.5 | 3.5 | 4.5 | 5.5 | 14.1 | 17.9 | 115 | 85 | 5 |
| SAPL-R-15 x 19 | |
5.3 | 6.3 | 10800 | 3.5 | 3.5 | 4.5 | 5.5 | 15.1 | 18.9 | 110 | 85 | 5 |
| SAPL-R-16 x 20 | |
5.3 | 6.3 | 10000 | 3.5 | 3.5 | 4.5 | 5.5 | 16.1 | 19.9 | 105 | 85 | 6 |
| SAPL-R-17 x 21 | |
5.3 | 6.3 | 9600 | 3.5 | 3.5 | 4.5 | 5.5 | 17.1 | 20.9 | 105 | 80 | 6 |
| SAPL-R-18 x 22 | |
5.3 | 6.3 | 9150 | 3.5 | 3.5 | 4.5 | 5.5 | 18.1 | 21.9 | 100 | 110 | 7 |
| SAPL-R-19 x 24 | |
5.3 | 6.3 | 12500 | 3.5 | 3.5 | 4.5 | 5.5 | 19.2 | 23.8 | 140 | 105 | 7 |
| SAPL-R-20 x 25 | |
5.3 | 6.3 | 12000 | 3.5 | 3.5 | 4.5 | 5.5 | 20.2 | 24.8 | 135 | 115 | 9 |
| SAPL-R-22 x 26 | |
5.3 | 6.3 | 9000 | 3.5 | 3.5 | 4.5 | 5.5 | 22.2 | 25.8 | 135 | 110 | 7 |
| SAPL-R-24 x 28 | |
5.3 | 6.3 | 8400 | 3.5 | 3.5 | 4.5 | 5.5 | 24.2 | 27.8 | 130 | 95 | 8 |
| SAPL-R-25 x 30 | |
5.3 | 6.3 | 10000 | 3.5 | 3.5 | 4.5 | 5.5 | 25.2 | 29.8 | 115 | 100 | 9 |
| SAPL-R-28 x 32 | |
5.3 | 6.3 | 7500 | 3.5 | 3.5 | 4.5 | 5.5 | 28.2 | 31.8 | 115 | 85 | 10 |
| SAPL-R-30 x 35 | |
5.3 | 6.3 | 8600 | 3.5 | 3.5 | 4.5 | 5.5 | 30.2 | 34.8 | 100 | 115 | 11 |
| SAPL-R-32 x 36 | |
5.3 | 6.3 | 7900 | 3.5 | 3.5 | 4.5 | 5.5 | 32.2 | 35.8 | 130 | 110 | 11 |
| SAPL-R-35 x 40 | |
6 | 7 | 10000 | 3.5 | 3.5 | 4.5 | 5.5 | 35.2 | 39.8 | 125 | 100 | 16 |
| SAPL-R-36 x 42 | |
6 | 7 | 11700 | 3.5 | 3.5 | 4.5 | 5.5 | 36.2 | 41.8 | 115 | 95 | 19 |
| SAPL-R-38 x 44 | |
6 | 7 | 11000 | 3.5 | 3.5 | 4.5 | 5.5 | 38.2 | 43.8 | 110 | 105 | 21 |
| SAPL-R-40 x 45 | |
6.6 | 8 | 13900 | 3.5 | 4.5 | 5.5 | 6.5 | 40.2 | 44.8 | 115 | 95 | 21 |
| SAPL-R-42 x 48 | |
6.6 | 8 | 15550 | 3.5 | 4.5 | 5.5 | 6.5 | 42.2 | 47.8 | 110 | 95 | 26 |
| SAPL-R-45 x 52 | |
8.6 | 10 | 28300 | 3.5 | 4.5 | 5.5 | 6.5 | 45.2 | 51.8 | 105 | 135 | 45 |
| SAPL-R-48 x 55 | |
8.6 | 10 | 24700 | 3.5 | 4.5 | 5.5 | 6.5 | 48.2 | 54.8 | 155 | 130 | 43 |
| SAPL-R-50 x 57 | |
8.6 | 10 | 23600 | 3.5 | 4.5 | 5.5 | 6.5 | 50.2 | 56.8 | 150 | 125 | 45 |
- Pt(容许轴向推力)是指扭矩为0时的数值，Tc(最大容许扭矩)是指轴向推力负载为0时的数值。
轴向推力和扭矩同时存在时请参考设计确认事项中计算公式。 - 为发挥其最佳性能请把轴、轴套、本体内轮、本体外轮的锈和灰尘清理干净。
