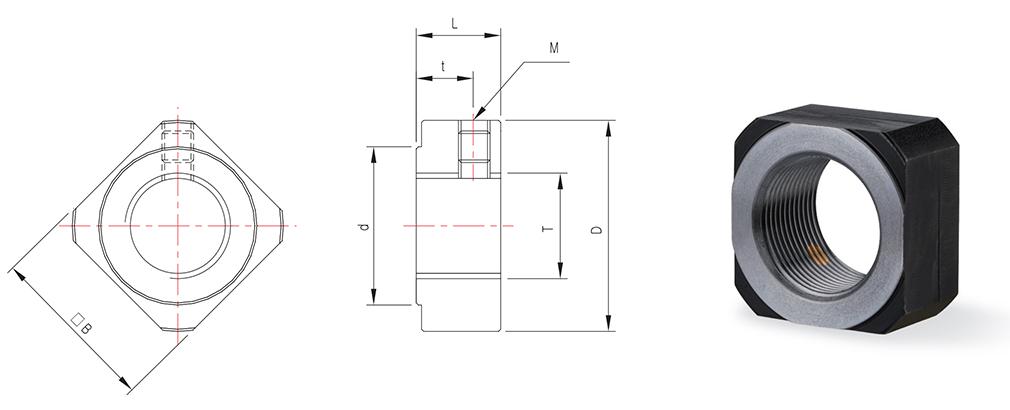

RN Series (普通负载用)

规格

产品型号	CAD	主要尺寸 (mm)							锁紧扭矩 (N.m)	质量 (g)
		T	M	D	d	L	t	□B
RN-4		M4×0.5	M3×0.5	11	8.5	5	2.7	10	1.6	4
RN-5		M5×0.5	M3×0.5	13	9	5	2.7	11	2	5
RN-6		M6×0.75	M3×0.5	14.5	10	5	2.7	12	2.5	5
RN-8		M8×1	M3×0.5	17	13	6.5	4	14	5	8
RN-8 (0.75P)		M8×0.75	M3×0.5	17	13	6.5	4	14	5	8
RN-10		M10×1	M4×0.7	20	15	8	5.5	16	9.5	10
RN-10 (0.75P)		M10×0.75	M4×0.7	20	15	8	5.5	16	9.5	10
RN-12		M12×1	M4×0.7	22	17	8	5.5	19	14	14
RN-15		M15×1	M4×0.7	25	21	8	4.5	22	24	15
RN-17		M17×1	M4×0.7	30	25	13	9	24	35	17
RN-20		M20×1	M4×0.7	35	26	11	7	30	48	35
RN-25		M25×1.5	M5×0.8	43	33	15	10	35	86	45
RN-30		M30×1.5	M6×1	48	39	20	14	40	128	80
RN-35		M35×1.5	M8×1.25	60	46	21	14	50	192	130
RN-40		M40×1.5	M8×1.25	63	51	25	18	50	256	235

产品种类及材质信息

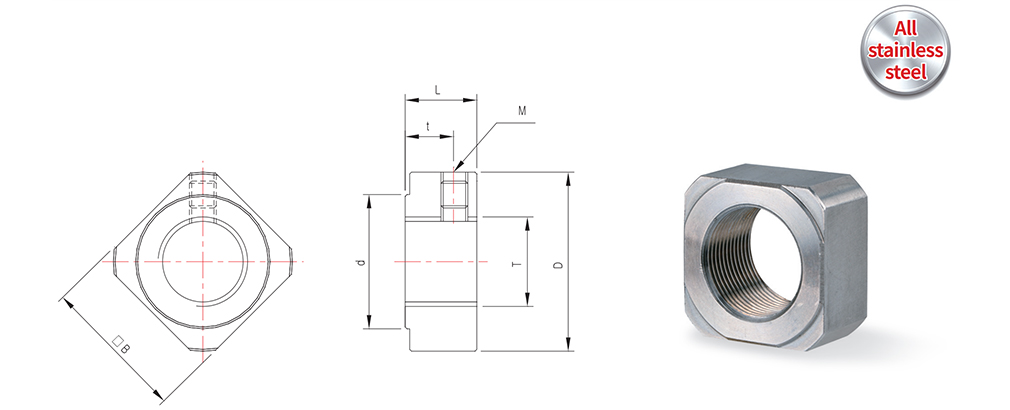

RNSS Series (普通负载用)

规格

产品型号	CAD	尺寸 (mm)							锁紧扭矩 (N.m)	质量(g)
		T	M	D	d	L	t	□B
RNSS-4		M4×0.5	M3×0.5	11	8.5	5	2.7	10	1.6	4
RNSS-5		M5×0.5	M3×0.5	13	9	5	2.7	11	2	5
RNSS-6		M6×0.75	M3×0.5	14.5	10	5	2.7	12	2.5	5
RNSS-8		M8×1	M3×0.5	17	13	6.5	4	14	5	8
RNSS-8 (0.75P)		M8×0.75	M3×0.5	17	13	6.5	4	14	5	8
RNSS-10		M10×1	M4×0.7	20	15	8	5.5	16	9.5	10
RNSS-10 (0.75P)		M10×0.75	M4×0.7	20	15	8	5.5	16	9.5	10
RNSS-12		M12×1	M4×0.7	22	17	8	5.5	19	14	14
RNSS-15		M15×1	M4×0.7	25	21	8	4.5	22	24	15
RNSS-17		M17×1	M4×0.7	30	25	13	9	24	35	17
RNSS-20		M20×1	M4×0.7	35	26	11	7	30	48	35
RNSS-25		M25×1.5	M5×0.8	43	33	15	10	35	86	45
RNSS-30		M30×1.5	M6×1	48	39	20	14	40	128	80
RNSS-35		M35×1.5	M8×1.25	60	46	21	14	50	192	130
RNSS-40		M40×1.5	M8×1.25	63	51	25	18	50	256	235

产品种类及材质信息

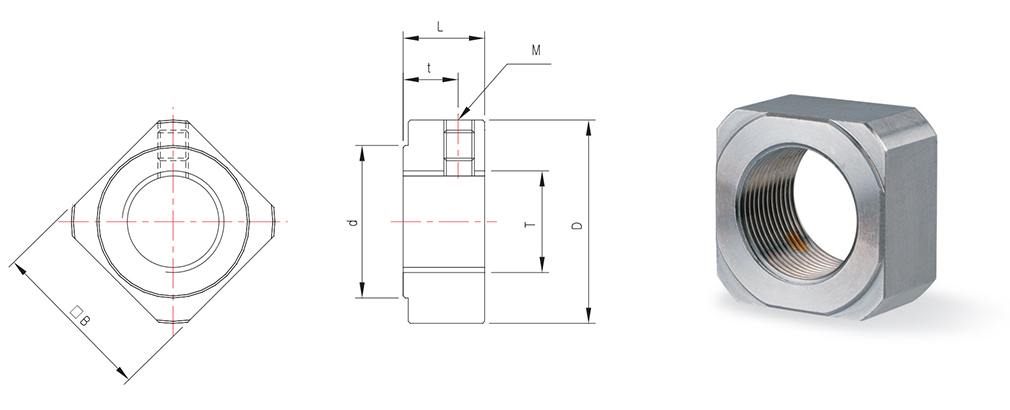

RNSB Series (普通负载用)

规格

产品型号	CAD	尺寸 (mm)							锁紧扭矩 (N.m)	质量(g)
		T	M	D	d	L	t	□B
RNSB-4		M4×0.5	M3×0.5	11	8.5	5	2.7	10	1.6	4
RNSB-5		M5×0.5	M3×0.5	13	9	5	2.7	11	2	5
RNSB-6		M6×0.75	M3×0.5	14.5	10	5	2.7	12	2.5	5
RNSB-8		M8×1	M3×0.5	17	13	6.5	4	14	5	8
RNSB-8 (0.75P)		M8×0.75	M3×0.5	17	13	6.5	4	14	5	8
RNSB-10		M10×1	M4×0.7	20	15	8	5.5	16	9.5	10
RNSB-10 (0.75P)		M10×0.75	M4×0.7	20	15	8	5.5	16	9.5	10
RNSB-12		M12×1	M4×0.7	22	17	8	5.5	19	14	14
RNSB-15		M15×1	M4×0.7	25	21	8	4.5	22	24	15
RNSB-17		M17×1	M4×0.7	30	25	13	9	24	35	17
RNSB-20		M20×1	M4×0.7	35	26	11	7	30	48	35
RNSB-25		M25×1.5	M5×0.8	43	33	15	10	35	86	45
RNSB-30		M30×1.5	M6×1	48	39	20	14	40	128	80
RNSB-35		M35×1.5	M8×1.25	60	46	21	14	50	192	130
RNSB-40		M40×1.5	M8×1.25	63	51	25	18	50	256	235

产品种类及材质信息

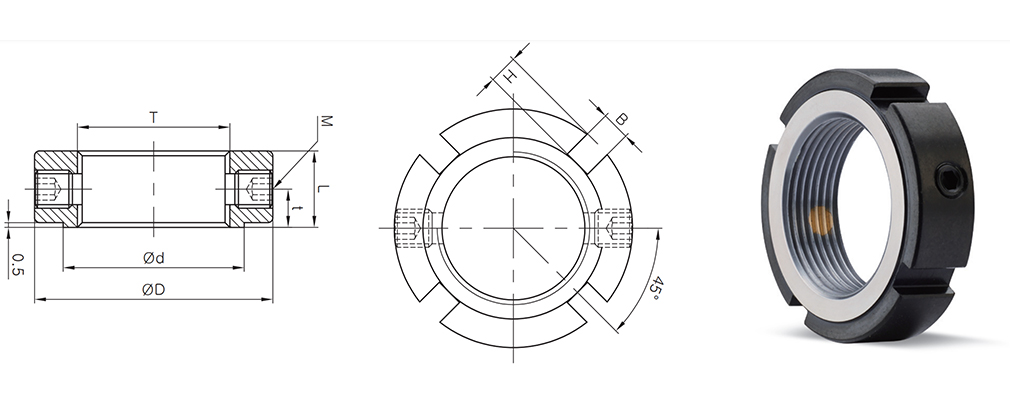

ZN Series (普通负载用)

规格

产品型号	CAD	主要尺寸 (mm)								锁紧扭矩 (N.m)	质量 (g)
		T	M	D	d	L	t	B	H
ZN-8		M8X1.0	2-M4X0.7	16	12	8	4	3	2	5	7
ZN-8 (0.75P)		M8X0.75	2-M4X0.7	16	12	8	4	3	2	5	7
ZN-10		M10X1.0	2-M4X0.7	18	14	8	4	3	2	9.5	9
ZN-10 (0.75P)		M10X0.75	2-M4X0.7	18	14	8	4	3	2	9.5	9
ZN-12		M12X1.0	2-M4X0.7	22	16	8	4	3	3	14	13
ZN-15		M15X1.0	2-M4X0.7	25	19	8	4	3	3	24	17
ZN-17		M17X1.0	2-M5X0.8	28	21	10	5	4	3	35	25
ZN-20		M20X1.0	2-M5X0.8	32	25	10	5	4	3	48	33
ZN-25		M25X1.5	2-M6X1	38	31	12	6	5	3	86	54
ZN-30		M30X1.5	2-M6X1	45	38	12	6	5	3	128	77
ZN-35		M35X1.5	2-M6X1	52	45	12	6	5	3	192	103
ZN-40		M40X1.5	2-M6X1	58	50	14	7	6	3	256	143

产品种类及材质信息

HLRN Series (高载荷用)

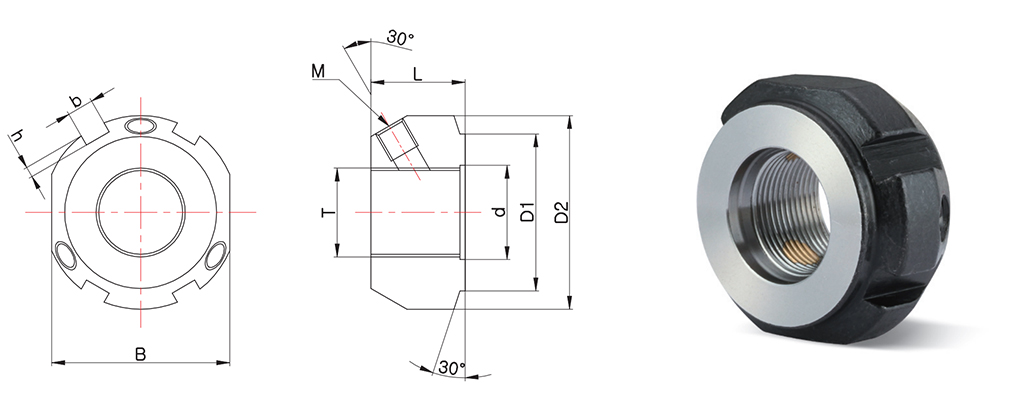

HLRN-17

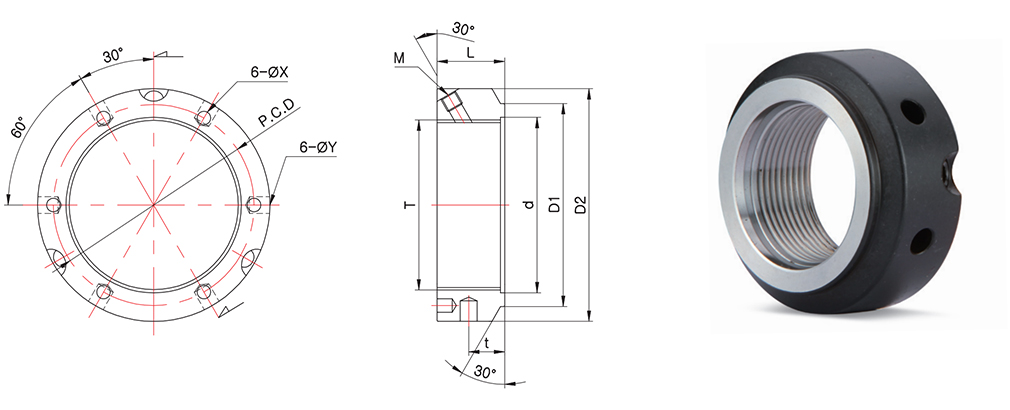

HLRN-20 ~ HLRN-40

规格

产品型号	CAD	主要尺寸 (mm)													锁紧扭矩 (N.m)
		T	M	d	D1	D2	t	L	X	Y	P.C.D	b	h	B
HLRN-17		M17x1.0	M6x6	18	30	37	-	18	-	-	-	5	2.5	30	41
HLRN-20		M20x1.0	M6x6	21	30	38	10	18	4.3	4	29				45
HLRN-25		M25x1.5	M6x6	26	35	42	11	20	4.3	4	32.5				87
HLRN-30		M30x1.5	M6x6	31	40	48	11	20	4.3	5	40.5				105
HLRN-35		M35x1.5	M6x6	36	47	53	11	20	4.3	5	45.5				145
HLRN-40		M40x1.5	M6x6	41	52	58	12	22	4.3	5	50.5				160

产品种类及材质信息
