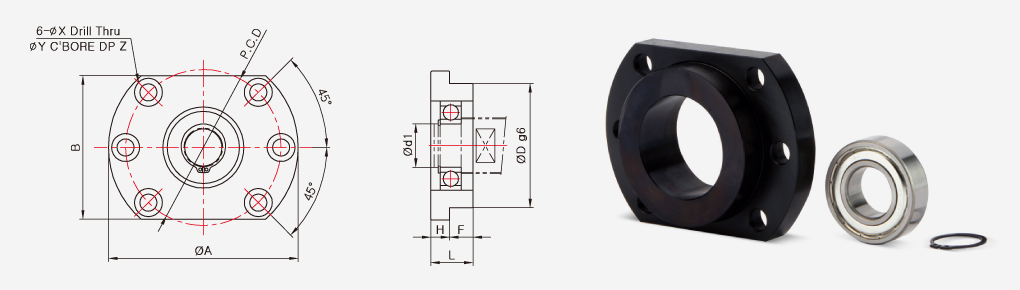

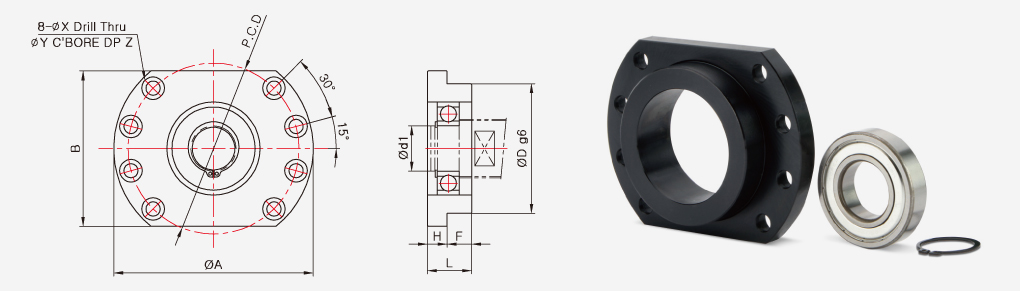

FF Series (支撑端)
FF-6 ~ FF-30
规格
| 产品型号 | CAD | 主要尺寸 (mm) | 质量 (g) |
卡簧 | 轴承 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 本体 | |||||||||||||||
| d1 | L | H | F | D | A | P.C.D | □B | X | Y | Z | |||||
| FF-6/FF-8 |  |
6 | 10 | 6 | 4 | 22 | 36 | 28 | 28 | 3.4 | 6.5 | 3 | 30 | C6 | 606ZZ |
| FF-10 | |
8 | 12 | 7 | 5 | 28 | 43 | 35 | 35 | 3.4 | 6.5 | 4 | 60 | C8 | 608ZZ |
| FF-12 | |
10 | 15 | 7 | 8 | 34 | 52 | 42 | 42 | 4.5 | 8 | 4 | 100 | C10 | 6000ZZ |
| FF-15 | |
15 | 17 | 9 | 8 | 40 | 63 | 50 | 52 | 5.5 | 9.5 | 5.5 | 140 | C15 | 6002ZZ |
| FF-17 | |
17 | 20 | 11 | 9 | 50 | 77 | 62 | 61 | 6.6 | 11 | 6.5 | 290 | C17 | 6203ZZ |
| FF-20 | |
20 | 20 | 11 | 9 | 57 | 85 | 70 | 68 | 6.6 | 11 | 6.5 | 380 | C20 | 6204ZZ |
| FF-25 | |
25 | 24 | 14 | 10 | 63 | 98 | 80 | 79 | 9 | 14 | 8.5 | 590 | C25 | 6205ZZ |
| FF-30 | |
30 | 27 | 18 | 9 | 75 | 117 | 95 | 93 | 11 | 17.5 | 11 | 930 | C30 | 6206ZZ |
