FK Series (固定端)

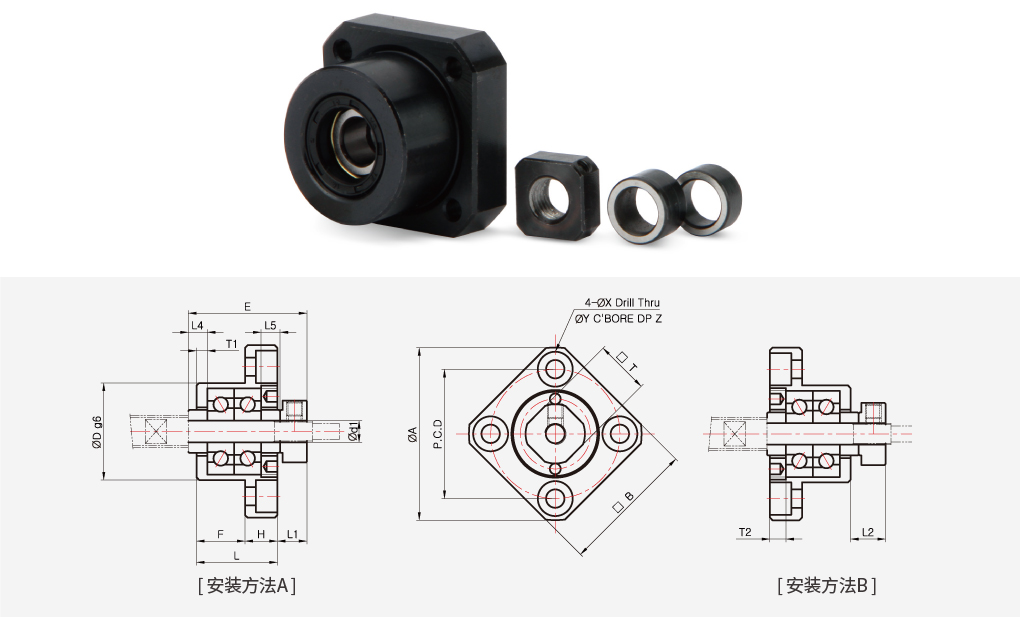

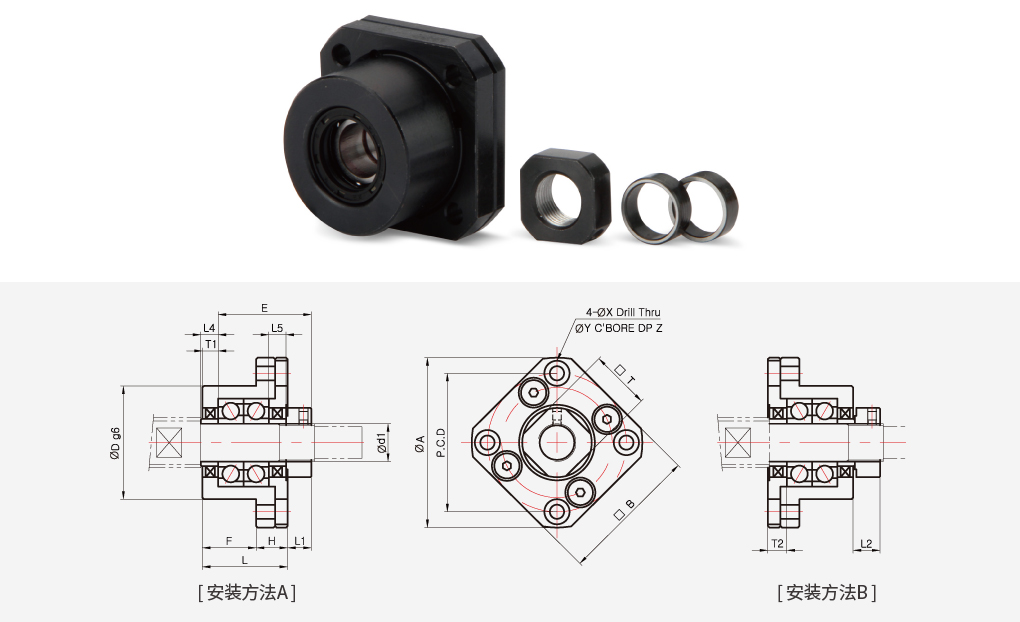

FK-4 ~ FK-8

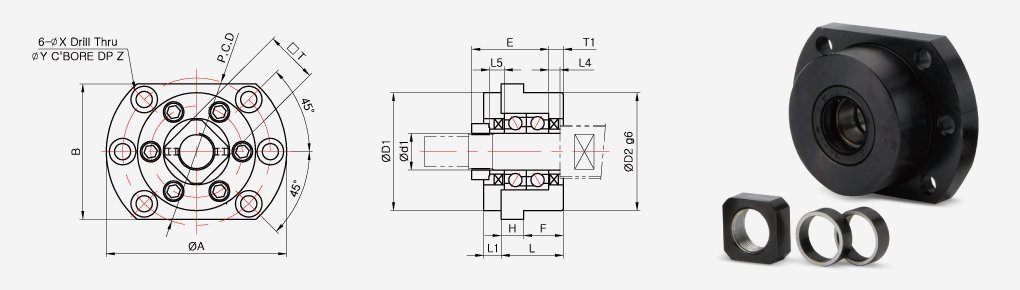

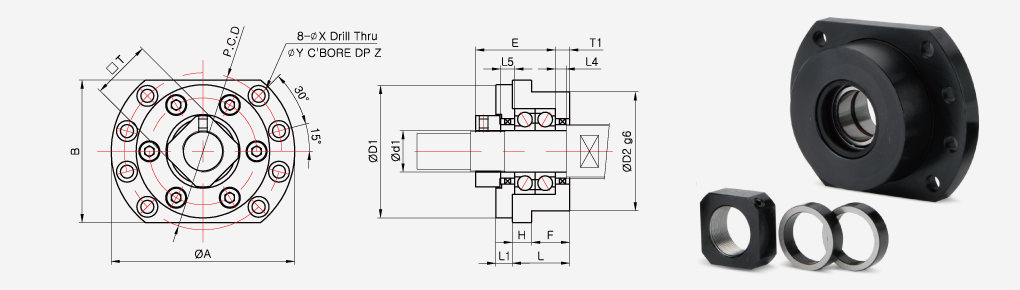

FK-10 ~FK-30
※FK-30：采购安装B时需要变更轴环尺寸，请务必与我司联系确认。
规格
| 产品型号 | CAD | 主要尺寸 (mm) | 质量 (g) |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 本体 | 轴环 | ||||||||||||||||||||
| d1 | L | H | F | E | D | A | P.C.D | □B | 安装方法A | 安装方法B | X | Y | Z | □T | L4 | L5 | |||||
| L1 | T1 | L2 | T2 | ||||||||||||||||||
| FK-4 P5/P0-C7 |  |
4 | 15 | 6 | 9 | 22 | 18 | 32 | 24 | 25 | 5.5 | 3/2 | 6.5 | 4/3 | 3.4 | 6 | 4 | 10 | 4.5/3.5 | 4.5/3.5 | 40 |
| FK-5 P5/P0-C7 | |
5 | 16.5 | 6 | 10.5 | 24 | 20 | 34 | 26 | 26 | 5.5/6.5 | 3.5 | 7/6 | 5/3 | 3.4 | 6/6.5 | 4 | 11 | 5.5/4.5 | 5.5/4.5 | 50 |
| FK-6 | |
6 | 20 | 7 | 13 | 29 | 22 | 36 | 28 | 28 | 5.5 | 3.5 | 8.5 | 4.5 | 3.4 | 6.5 | 4 | 12 | 7 | 5 | 65 |
| FK-8 | |
8 | 23 | 9 | 14 | 33.5 | 28 | 43 | 35 | 35 | 7 | 4 | 10 | 5 | 3.4 | 6.5 | 4 | 14 | 7.5 | 5.5 | 125 |
| FK-10 | |
10 | 27 | 10 | 17 | 29.5 | 34 | 52 | 42 | 42 | 7.5 | 5 | 8.5 | 6 | 4.5 | 8 | 4 | 16 | 5.5 | 5.5 | 200 |
| FK-12 | |
12 | 27 | 10 | 17 | 29.5 | 36 | 54 | 44 | 44 | 7.5 | 5 | 8.5 | 6 | 4.5 | 8 | 4 | 19 | 5.5 | 5.5 | 225 |
| FK-15 | |
15 | 32 | 15 | 17 | 36 | 40 | 63 | 50 | 52 | 10 | 6 | 12 | 8 | 5.5 | 9.5 | 6 | 22 | 10 | 10 | 340 |
| FK-17 | |
17 | 45 | 22 | 23 | 46 | 50 | 77 | 62 | 61 | 10 | 9 | 13 | 12 | 6.6 | 11 | 10 | 24 | 9 | 9 | 770 |
| FK-20 | |
20 | 52 | 22 | 30 | 50 | 57 | 85 | 70 | 68 | 8 | 10 | 12 | 14 | 6.6 | 11 | 10 | 30 | 11 | 11 | 1,065 |
| FK-25 | |
25 | 57 | 27 | 30 | 60 | 63 | 98 | 80 | 79 | 13 | 10 | 20 | 17 | 9 | 15 | 13 | 35 | 15 | 15 | 1,465 |
| FK-30 | |
30 | 62 | 30 | 32 | 61 | 75 | 117 | 95 | 93 | 11 | 12 | 21 | 18 | 11 | 17.5 | 15 | 40 | 9 | 9 | 2,300 |
※ FK-4,FK-5除外的其他产品，同一型号轴承和等级无关规格尺寸都相同。
★ 经济型C5级产品只适用于支撑座型号10~20范围内，选型时请注意区分。
